Rated voltage: AC100V~240V 50/60Hz
Input power: 300W
Light source specifications: 36pcs 10W 4-in-1 LED light source
Approved life: 50,000 hours
Color: red, green, blue and white
Focusing: DMX linear focusing, with autofocus function
Color temperature control: Built-in CTO DMX linear dimming
Electronic strobe, 0.3~25 times/second, synchronous and asynchronous random strobe can be selected
Dimming: electronic dimming 0~100% linear adjustment, with gamma curve dimming frequency 1.2K~25K adjustable, with macro dimming, stable and smooth without flickering, using stable constant current drive and power supply, suitable for video shooting
Rotation angle: The XY axis is driven by a high-speed silent motor, with a high-precision imported Hall positioning device, which makes the operation positioning more accurate, and can automatically return to the position after maloperation, and the horizontal and vertical speed can be adjusted; XY axis rotation function and negation function
540° horizontally (16-bit scanning), 270° vertical (16-bit scanning)
Control mode: 16 (thin) 1 channel control mode, standard DMX512 protocol, RDM protocol

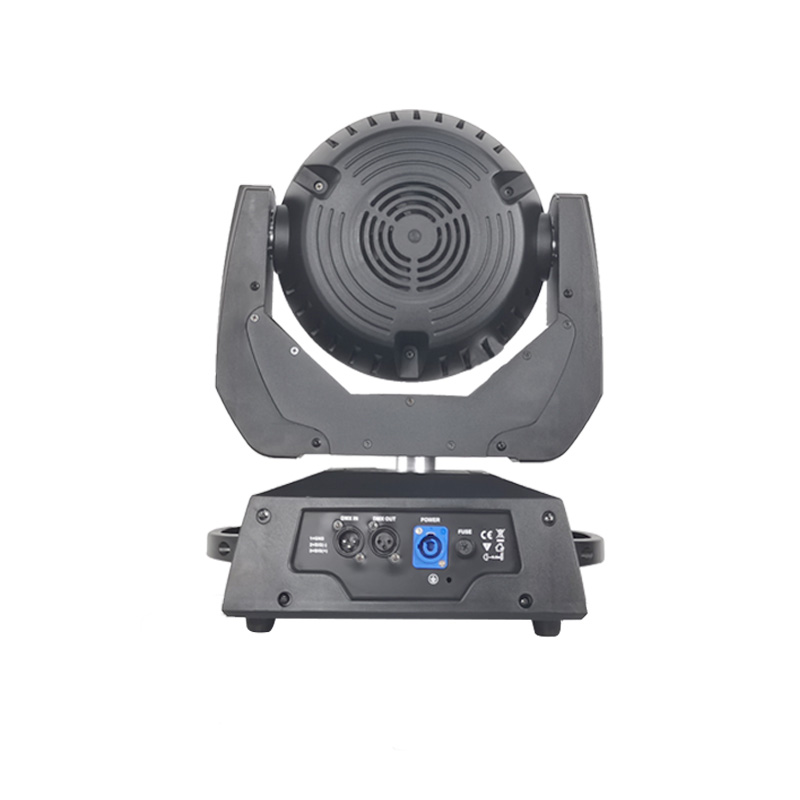

Control interface: DMX512 interface (3 cores/optional 5 cores), power cord hand-in-hand socket
Sleep function: The advanced technology is used to realize the remote sleep function, and it will automatically enter the sleep state when the lamp disconnects the signal, making the lamp more stable and safer

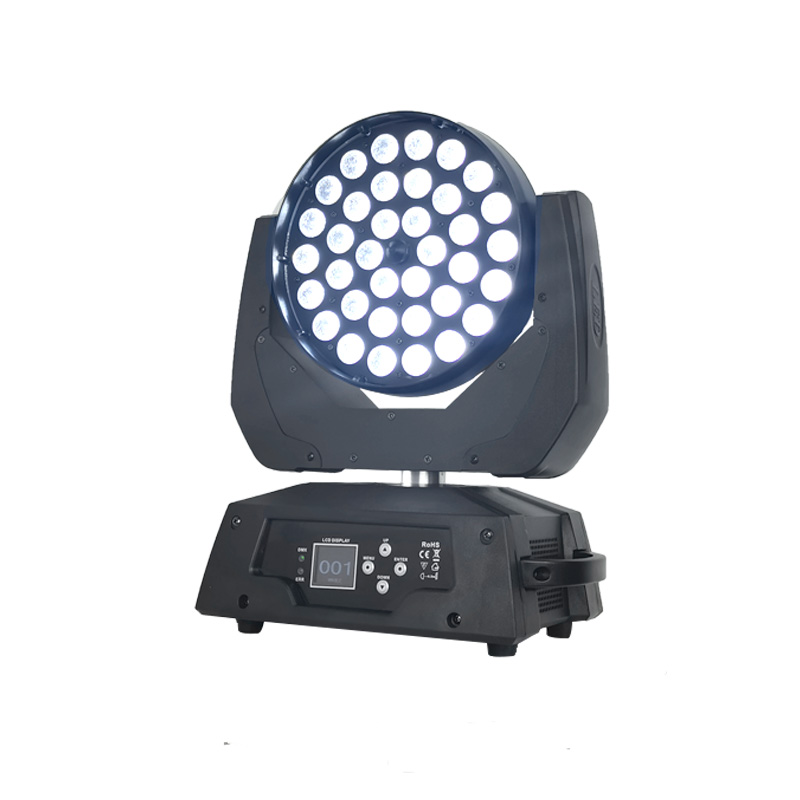

Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display
Heat dissipation system: using high-conductivity light aluminum radiator, fan intelligent monitoring technology automatically adjusts the fan speed according to the temperature of the lamp, built-in overheat protection intelligent system/intelligent temperature and noise balance module
Degree of protection: IP20, optional rain cover up to IP44
Lighting packing: waterproof and shockproof flight box or carton
Net weight: 9.6KG
GROSS WEIGHT: 11KG
Product size: 22*33*39CM
Packing Size: 42.5*29.5*39CM
Effect Mode: (Focus/Beam)
Full control effect of lamp beads: strobe, horse running effect, with built-in program
Peculiarity:
1. The integrated motherboard design solves the problems of e-liquid, colored paper, etc., and can control the lamp beads separately, the horse running effect, built-in and other rich effects, and the product has a built-in RDM remote control console dial upgrade function
